Product Structure & Working Principle

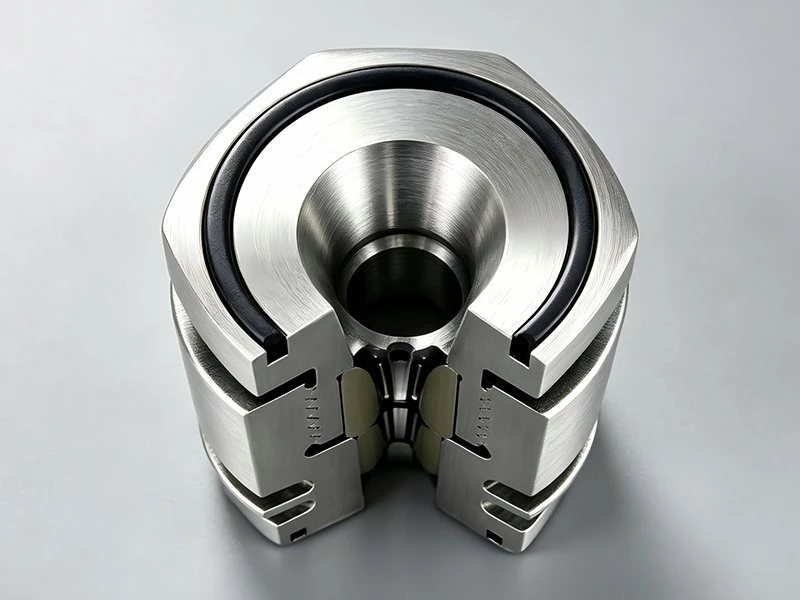

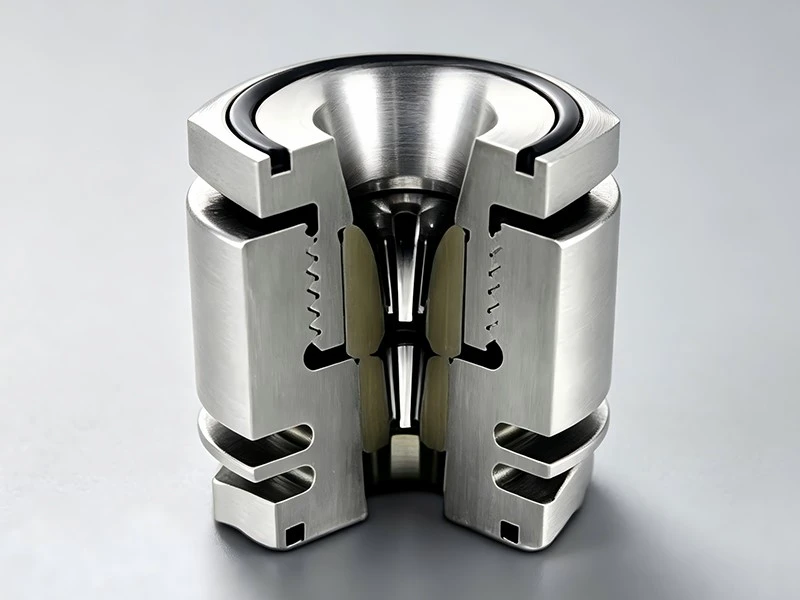

Pressure wire drawing dies adopt a combined dual-cavity pressure locking structure, composed of front pressure lubrication cavity, positioning gasket, precision drawing die core and high-strength steel bushing. Different from conventional open-type drawing dies, this die adds a closed pressure chamber at the inlet end. During operation, the wire passes through the pressure cavity first to squeeze and seal the lubricant, forming 0.3–0.8MPa stable internal lubrication pressure. The forced pressure feeds lubricant evenly into the die deformation zone, solving the problem of insufficient lubrication and dry friction in high-speed drawing, realizing physical lubrication enhancement through structural mechanical compression.
Core Structural & Process Advantages
The pressure die features a customized gap sealing design with 0.02–0.05mm precise inlet clearance, which retains lubricant inside the cavity without leakage. Matching 10°–16° optimized drawing cone angle, it makes the lubricant form a continuous dense protective film on the wire surface before metal plastic deformation. This structural optimization reduces die-wire direct friction by 30%–40%, effectively eliminating dry grinding, die glazing and metal adhesion defects that are common in traditional drawing processes. It is fully compatible with both dry and wet industrial drawing production lines.
Quantified Production Performance Promotion
In standardized industrial continuous drawing (speed range 400–1000m/min), pressure drawing dies deliver stable and measurable production upgrades. The forced lubrication system reduces wire breakage rate by 25%–35% and cuts defective products such as surface scratches and burrs by over 40%. The service life of carbide and diamond die cores increases by1.8–2.5 times due to reduced abrasive wear. Meanwhile, uniform lubrication lowers drawing tension by 12%–18%, reducing equipment load and unit power consumption for long-term mass production.
Applicable Working Environment & Lubrication Matching
This pressure die adapts to multiple industrial lubricant media, including solid soap powder, water-based emulsion and high-temperature extreme-pressure lubricating oil, suitable for working temperatures of 30°C–150°C. The fully enclosed pressure cavity structure avoids lubricant splashing and invalid loss in high-speed operation, improving lubricant utilization by over 30%. It stably operates in 24-hour continuous cyclic production, effectively resisting thermal wear and fatigue deformation caused by long-term high-speed friction.
Industrial Application Scenarios
Pressure drawing dies are specially optimized for high-yield and high-surface-quality wire production, widely used in multiple industries. Steel wire processing: high-carbon steel welding wire, tire bead wire, spring steel wire; non-ferrous metal processing: copper wire, brass wire, aluminum alloy wire; precision metal processing: medium and fine alloy wires for hardware and fasteners. It is the preferred tool for solving poor surface finish and high breakage rate in high-speed wire drawing lines.
Customization & Technical Service
We provide personalized pressure die customization according to on-site production parameters. Customers only need to supply incoming wire size, finished wire diameter, drawing speed, lubricant type and wire material grade. Our engineers will adjust pressure cavity volume, inlet gap and cone angle parameters, and deliver matched forced lubrication drawing process schemes to maximize production efficiency and die service life.
FAQ
Q: What is the biggest difference between pressure drawing dies and ordinary drawing dies?
A: Pressure dies adopt a closed pressure cavity forced lubrication structure, forming stable internal lubrication pressure, which fundamentally improves lubrication uniformity, reduces friction and wear, and is more suitable for high-speed mass production than ordinary open dies.
Q: What types of wire is the pressure die suitable for?
A: Ideal for high-carbon steel, low-carbon steel, alloy steel, copper, aluminum and brass wires, especially suitable for high-speed production scenarios requiring high wire surface quality.
Q: Can pressure dies improve die service life significantly?
A: Yes. Forced lubrication reduces core abrasive wear and thermal fatigue, increasing die service life by 1.8–2.5 times and greatly reducing downtime for die replacement.
