Key Specifications
|
Parameter |
Importance |
|
Nail type |
Determines die geometry |
|
Wire diameter |
Defines forming cavity requirements |
|
Nail length |
Determines finished dimensions |
|
Nail head diameter |
Required for heading geometry |
|
Nail head shape |
Determines forming cavity |
|
Nail material |
Influences forming load |
|
Machine model |
Determines die dimensions |
|
Production speed |
Affects tooling load |
|
Carbide grade |
Influences wear and impact resistance |

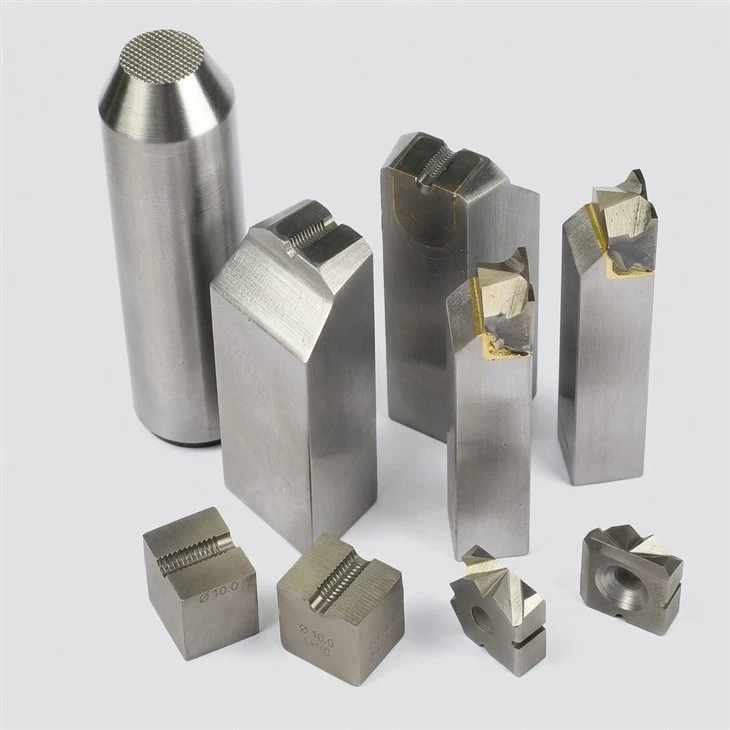

Carbide Nail Die Types
Nail Forming Dies
Used to shape the nail body and define the required dimensions during forming.
Nail Heading Dies
Used to form the nail head according to the required head diameter, thickness and profile.
Nail Cutting Dies
Used together with the cutting mechanism to separate the required nail length from the incoming wire.
Custom Nail Dies
Manufactured according to nail drawings, machine specifications or existing tooling samples.
How to Order Carbide Nail Making Dies
For accurate die selection, provide:
Wire Diameter + Nail Length + Nail Head Diameter + Nail Type + Machine Model
A technical drawing is preferred for customized nails.
For example:
Wire Diameter: Ø2.50 mm
Nail Length: 50 mm
Head Diameter: 5.00 mm
Material: Low-carbon steel
Machine: Customer specification
Quantity: 10 pcs
This information allows the die manufacturer to match the forming cavity with the actual nail production process.
Requirement Review → Carbide Material Preparation → Die Forming → Precision Grinding → Inspection → Repair & Maintenance
1. Requirement Review: Confirm nail drawing, wire material, machine model, production speed
2. Carbide Material Preparation: Select WC-Co grade, carbide blank preparation
3. Die Forming: Compaction, sintering, EDM wire cut to rough cavity shape
4. Precision Grinding: Internal & external grinding, cavity lapping to mirror finish
5. Inspection: Dimension check, surface defect inspection, hardness test
6. Repair & Maintenance: Re-lapping worn cavity, refurbish inserts
FAQ
Q: What are Carbide Nail Making Dies?
A: They are tungsten carbide forming tools used in nail-making machines to shape steel wire into finished nails.
Q: What materials can be used for nail production?
A: They are commonly used for steel and other metal wires suitable for nail manufacturing.
Q: Can carbide nail dies be customized?
A: Yes. The die can be manufactured according to nail dimensions, head shape, wire diameter and machine specifications.
Q: What is the difference between a nail die and a nail punch?
A: The die provides the forming cavity, while the punch applies forming force and shapes specific features such as the nail head.
Q: What information is needed for a quotation?
A: Provide the wire diameter, nail length, head dimensions, nail material, nail drawing and machine model.
