Key Features
Designed for flat and rectangular wire profiles
Controls wire width and thickness
Suitable for steel, stainless steel, copper, brass, and aluminum wire
Available in standard and customized profiles
Working dimensions can be manufactured according to technical drawings
Suitable for multi-pass wire drawing processes
Typical Applications
- Flat copper wire
- Flat aluminum wire
- Stainless steel flat wire
- Rectangular steel wire
- Flat spring wire
- Electrical conductor wire
- Customized metal profiles

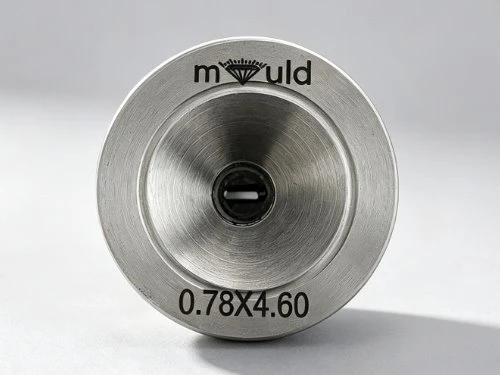

Custom Flat Wire Drawing Dies
The die can be customized according to the required wire width × thickness, corner radius, incoming wire size, drawing reduction, and dimensional tolerance. For non-standard flat wire, a technical drawing or CAD file is recommended to define the exact die profile.
FAQ
Q: What are they used for?
A: They are used to reduce and form metal wire into flat or rectangular profiles with controlled width and thickness.
Q: Can they be customized?
A: Yes. Die dimensions and profile geometry can be manufactured according to the finished wire specification.
Q: What materials can be drawn with flat wire dies?
A: Common materials include copper, aluminum, stainless steel, carbon steel, brass, and other metal alloys.
Q: How do I choose a flat wire drawing die?
A: The main factors are wire material, incoming size, finished width and thickness, corner radius, reduction per pass, required tolerance, and drawing equipment.
