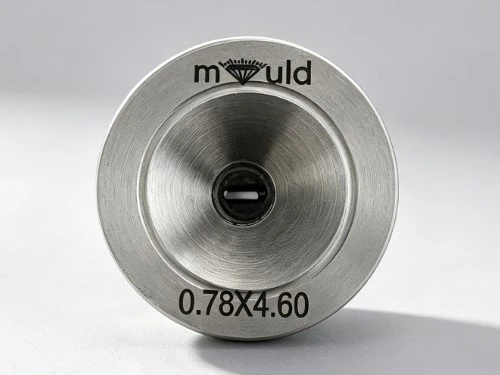

The manufacturing process of irregular-shaped wire drawing dies is relatively complex, typically involving the following main steps:
First, material selection is crucial. High-quality cemented carbide or similar materials are generally chosen to ensure the die possesses sufficient hardness and wear resistance to withstand the high pressure and friction during the wire drawing process.
The design phase is paramount. Based on the specific requirements of irregular wire drawing, the shape and dimensions of the die must be drawn, including the shape, angle, and dimensional accuracy of the die holes. This requires advanced CAD/CAM technology to ensure accuracy and efficiency.
During the manufacturing process, rough machining is the first step, removing most of the excess material through cutting and other methods, laying the foundation for subsequent finish machining. Finish machining employs high-precision grinding processes to finely refine the die holes, ensuring extremely high dimensional accuracy and surface roughness. This process requires specialized grinding machines and tools, and operators must possess highly skilled personnel to guarantee consistent processing quality.
Furthermore, a heat treatment process is necessary to improve the properties of the die material, increasing its hardness and toughness. The heat treatment process requires strict control of parameters such as temperature and time to prevent die deformation and other problems. Afterward, the finished irregular-shaped wire drawing die needs to be inspected and adjusted to check whether the size and shape of the die hole meet the requirements, and whether its working performance during the wire drawing process is good. If any problems are found, adjustments and repairs need to be made in a timely manner.
In short, the processing technology of irregular-shaped wire drawing dies is demanding and difficult, requiring the comprehensive application of various processing technologies and equipment. Furthermore, operators need to possess rich experience and superb skills to ensure the production of high-quality irregular-shaped wire drawing dies.
